Restoring the Haco Kingsland Multi 175 Ironworker in Texas: From Electrical Issues to Hydraulic Repair Solutions

When the Haco Kingsland Multi 175 ironworker suddenly stopped working, the initial suspicion fell on electrical faults. After tracing all electrical signals and confirming they were functioning correctly, the problem shifted to the hydraulic system. This post walks through the detailed process of diagnosing and repairing this complex machine, highlighting key steps and practical solutions that brought it back to life.

Diagnosing the Problem

The machine’s sudden halt raised immediate concerns about its electrical and hydraulic systems. The first step was to check all electrical signals. Using diagnostic tools, every wire and connection was tested, confirming that the electrical system was intact and sending the correct signals.

With electrical issues ruled out, attention turned to the hydraulic system. Testing the valves revealed no hydraulic pressure or oil flow. This indicated a mechanical failure within the hydraulic pump or motor assembly.

Discovering the Root Cause

To pinpoint the issue, the electrical motor, bell housing, and hydraulic pump were disassembled. This hands-on inspection revealed that the Lovejoy coupling, a critical component connecting the motor to the hydraulic pump, was completely ground to dust. This coupling transmits torque while accommodating slight misalignments between shafts.

The destruction of the coupling explained the lack of hydraulic pressure and oil flow. Without this connection, the hydraulic pump could not operate, causing the machine to stop.

Repairing the Coupling and Related Components

Replacing the coupling required careful removal of the damaged part. Using the correct pulley puller, the coupling was pulled off without damaging the shafts. The new Lovejoy coupling was installed, this time made of steel for greater durability. A spider made from the right material was also chosen to match the application’s demands, ensuring better performance and longer life.

During this repair, other worn or broken parts were identified and replaced:

• Emergency stops that were broken were fixed to ensure operator safety.

• Cable strainers on the foot pedals were replaced to maintain proper cable tension and prevent future failures.

Preventive Maintenance and Hydraulic Oil Replacement

After mechanical repairs, a preventive maintenance (PM) service was performed. The hydraulic oil was drained and replaced with AW ISO 46 hydraulic oil, which is suitable for this machine’s operating conditions. Fresh oil improves hydraulic efficiency and protects the system from wear and corrosion.

Regular PM like this helps avoid unexpected breakdowns and extends the machine’s lifespan.

Offering Upgrades for Improved Performance

Beyond repairs, suggestions were made to enhance the ironworker’s functionality:

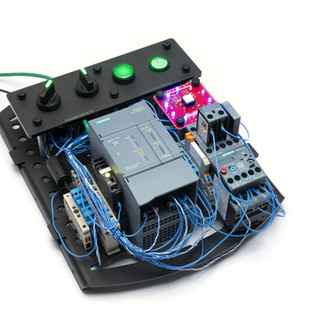

• Installing a Siemens PLC with a touch panel would modernize control, offering better precision and easier operation.

• New shear blades would improve cutting quality and reduce downtime.

• Adding pipe notcher tooling would expand the machine’s capabilities, allowing it to handle more complex tasks.




These upgrades can increase productivity and reduce maintenance needs over time.

Key Takeaways for Ironworker Maintenance

This restoration highlights several important points for anyone working with ironworkers or similar hydraulic machines:

• Always verify electrical signals before assuming electrical failure.

• Mechanical components like couplings can fail silently but cause major system breakdowns.

• Using the right materials for replacement parts is crucial for durability.

• Regular preventive maintenance, including hydraulic oil changes, keeps the system running smoothly.

• Upgrading control systems and tooling can improve efficiency and extend machine life.




By following these steps, operators and technicians can minimize downtime and maintain reliable machine performance.
